The VLS-H5 features a combined hardware and software anti-ambient-light design, upgrading the standard tolerance from 100 KLux to 160 KLux. Even in swimming pools under intense sunlight, it continuously delivers stable, complete, and high-quality point cloud data, providing a reliable perception foundation for robots and ensuring cleaning, navigation, and obstacle avoidance functions remain fully operational.
>5m, (NTU ≤ 4) >1.5m | 360° | 52mm×75mm×53.1mm | 125g |
Range | Scan angle | Dimensions | Weight |

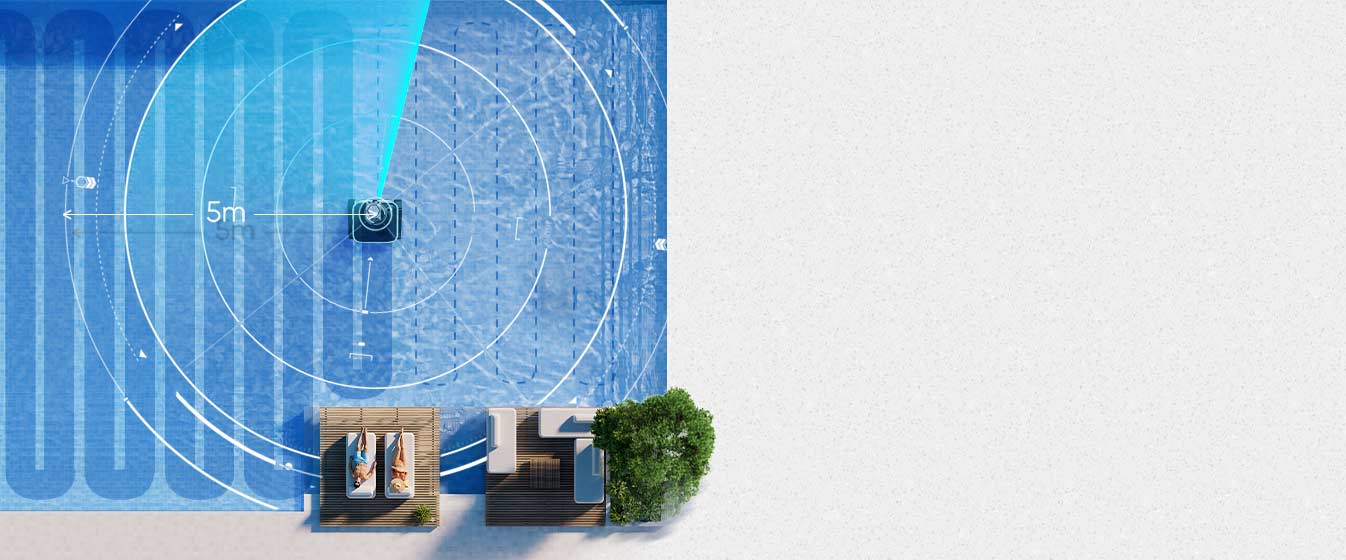

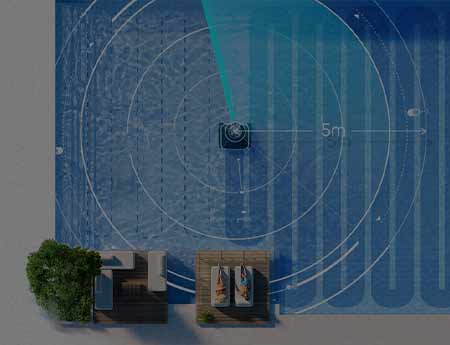

In clear water, the VLS-H5 achieves a detection range of over 5 meters, with a single scan covering more than 78 m² of pool area. Even in turbid water (NTU ≤ 4), it maintains an effective range of ≥1.5 meters. Combined with algorithmic compensation, it delivers accuracy better than 3 cm, ensuring precise localization, stable movement, and drift-free operation for the robot.
< 1cm @ 1σ (< 0.5 NTU) < 2cm @ 1σ (< 4 NTU) | ＜ 3 cm (< 0.5 NTU) < 4cm (<4 NTU | 0 ℃ ~ + 50 ℃ |
Repeatability accuracy | Accuracy | Operating temperature |

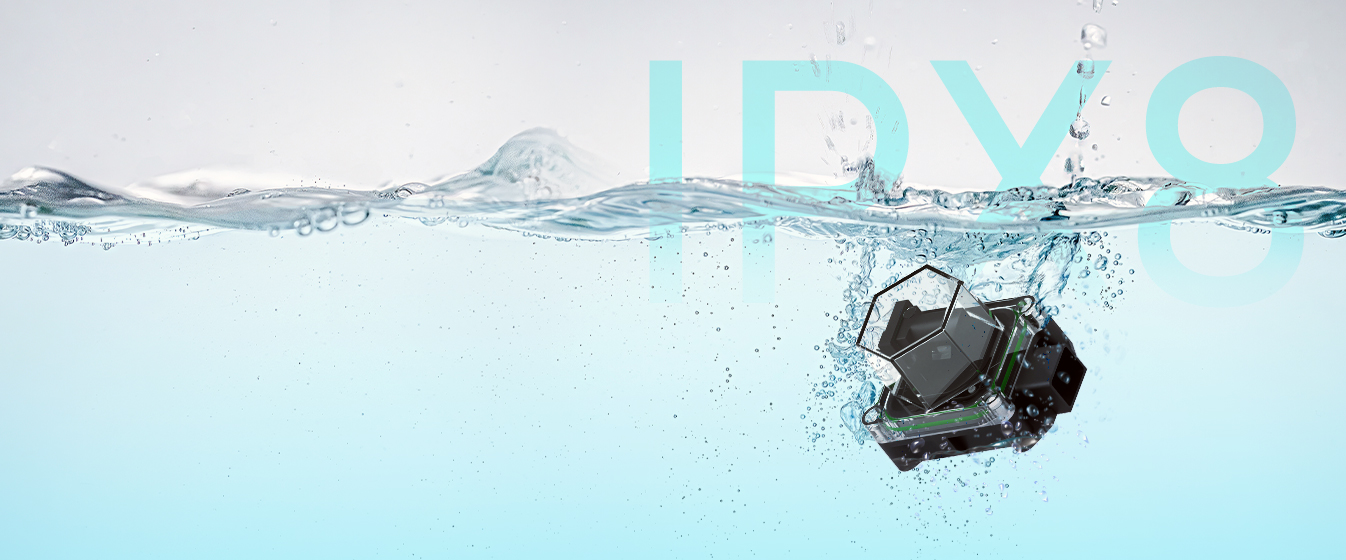

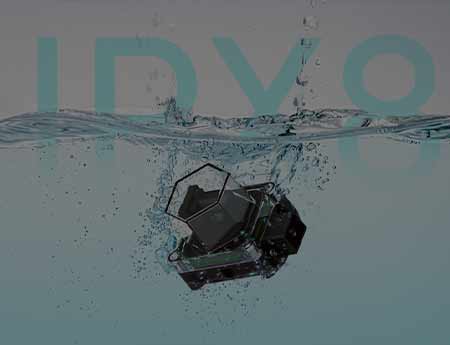

Within a compact form factor of 75 mm × 52 mm × 53 mm, the VLS-H5 achieves IPX8 waterproof protection, enabling long-term stable operation at depths of up to 4 meters underwater. Built with corrosion-resistant, scratch-resistant, and UV-resistant materials and coatings, it combines multiple protective measures to deliver a product that is easy to integrate, reliable in use, and built to last.
