Short Distance Series Product Model

Learn More Add to Comparison

Dimensions (L*W*H)24 × 16 × 21 mm

InterfaceUART, I²C

Protection Level

Power Consumption

Learn More Add to Comparison

Dimensions (L*W*H)26.5 mm × 21.05 mm × 12 mm

InterfaceUART, I/O, I²C

Protection LevelN/A

Frame Rate1 ~ 900 Hz

Power ConsumptionTBD

Learn More Add to Comparison

Dimensions (L*W*H)35 mm × 21.25 mm × 13.5 mm

InterfaceUART, I/O, I²C

Protection LevelN/A

Frame Rate1 ~ 250 Hz

Power Consumption≤ 0.35 W

Learn More Add to Comparison

Dimensions (L*W*H)42 mm × 15 mm × 16 mm

InterfaceUART, I/O, I²C

Protection LevelN/A

Range0.1 ~ 12 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 0.7 W

Weight5 ± 0.3 g

Learn More Add to Comparison

Dimensions (L*W*H)35 mm × 18.5 mm × 21 mm

InterfaceUART, I/O, I²C

Protection LevelIP65

Range0.1 ~ 12 m

Frame Rate1 ~ 1000 Hz

Power Consumption550 mW

Weight12 ± 1 g

Learn More Add to Comparison

Dimensions (L*W*H)50 mm × 34 mm × 41 mm

InterfaceCAN, RS-485

Protection LevelIP65

Range0.1 ~ 12 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 0.8 W @ 12 V

Learn More Add to Comparison

Dimensions (L*W*H)21 mm × 15 mm × 7.87 mm

InterfaceUART, I²C

Protection LevelN/A

Range0.2 ~ 20 m

Frame Rate1 ~ 250 Hz

Power Consumption≤ 0.35 W

Medium Distance Series Product Model

Learn More Add to Comparison

Dimensions (L*W*H)69 mm × 41.5 mm × 26 mm

InterfaceUART, I/O, I²C

Protection LevelIP65

Range0.1 ~ 40 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 1 W

Learn More Add to Comparison

Dimensions (L*W*H)69 mm × 40.5 mm × 31.25 mm

InterfaceCAN, RS-485

Protection LevelIP65

Range0.1 ~ 40 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 0.85 W @ 12 V

Learn More Add to Comparison

Dimensions (L*W*H)85 mm × 59 mm × 43 mm

InterfaceUART, RS-485, I/O, I²C

Protection LevelIP5X

Range0.1 ~ 25 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 2 W

Weight90 ~ 92 g

Long Distance Series Product Model

Learn More Add to Comparison

Dimensions (L*W*H)44 mm × 43 mm × 32 mm

InterfaceUART, CAN, RS-232, RS-485, 4 - 20mA

Protection LevelIP67

Range0.1 ~ 180 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 1 W

Weight89 ± 3 g

Learn More Add to Comparison

Dimensions (L*W*H)32.0 mm × 30.2 mm × 20.2 mm

InterfaceUART, CAN

Protection LevelN/A

Range0.1 ~ 290 m

Frame Rate1 ~ 10,000 Hz

Power Consumption≤ 0.45 W

Learn More Add to Comparison

Dimensions (L*W*H)78 mm × 67 mm × 40 mm

InterfaceUART, CAN, RS-232, RS-485, 4 - 20mA

Protection LevelIP67

Range0.2 ~ 350 m

Frame Rate1 ~ 1000 Hz

Power Consumption≤ 1 W

Weight224 ± 3 g

Kilometer-level

Learn More Add to Comparison

Dimensions (L*W*H)25 mm × 25 × 13 mm

Protection LevelN/A

Range3 ~ 1200 m

Power Consumption< 1.1 W

Learn More Add to Comparison

Dimensions (L*W*H)≤ 25 mm × 26 mm × 13 mm

Protection LevelN/A

Range0.5 ~ 1500 m

Frame Rate60 ~ 800Hz (adaptive)

Power Consumption≤ 1.8W

TR Series

Learn More Add to Comparison

Dimensions (L*W*H)60 mm × 60 mm × 80 mm

Protection LevelIP65

Frame Rate10 ~ 30 Hz

Power Consumption

Long Distance Series Product Model

Learn More Add to Comparison

Dimensions (L*W*H)92 mm × 47 mm × 51 mm

InterfaceEthernet, GMSL, I/O

Protection LevelIP67

Frame Rate10fps

Power Consumption

Learn More Add to Comparison

Dimensions (L*W*H)49 mm × 160 mm × 144 mm

Interface1000Base-T1 Automotive Ethernet

Protection LevelIP67 & IP6K9K

Range200 m @ 10%

Frame Rate10 Hz

Power Consumption≤ 15 W

Learn More Add to Comparison

Dimensions (L*W*H)192.6 mm × 157 mm × 126 mm

Interface1000Base-T

Protection LevelIP67

Range300 m @ 10%

Frame Rate1 ~ 20 FPS

Power Consumption≤ 35 W

Weight≤ 3.8 kg

Learn More Add to Comparison

Dimensions (L*W*H)183 mm × 157 mm × 120 mm

Interface1000Base-T

Protection LevelIP67

Range300 m @ 10%

Frame Rate1 ~ 20 FPS

Power Consumption≤ 35 W

Weight≤ 3.3 kg

Distributors News Contact Us

bw@benewake.com

Your Smart and Safe Ride

Products

Single-point

TF-UW500

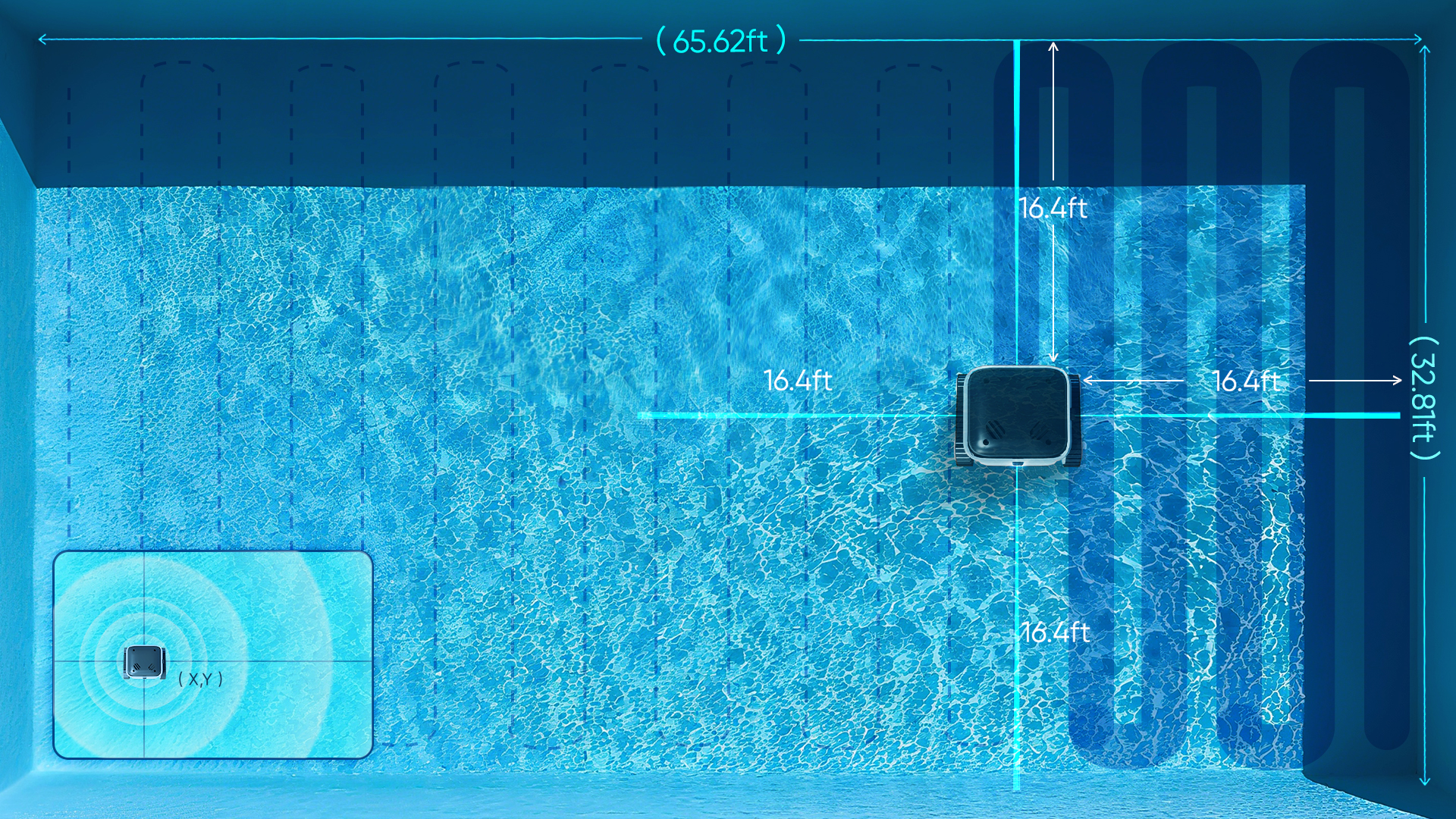

Adopting a dToF (direct Time-of-Flight) solution, the TF-UW500 maintains the compact design and low-power efficiency of its predecessor, while achieving a tenfold increase in detection range in low-turbidity water — enabling underwater robots to achieve breakthroughs in both precise mapping and stable positioning.

24 × 16 × 21 mm
UART,I²C

Single-point

2D Series

3D Series

24 × 16 × 21 mm

26.5 mm × 21.05 mm × 12 mm

35 mm × 21.25 mm × 13.5 mm

42 mm × 15 mm × 16 mm

35 mm × 18.5 mm × 21 mm

50 mm × 34 mm × 41 mm

21 mm × 15 mm × 7.87 mm

69 mm × 41.5 mm × 26 mm

69 mm × 40.5 mm × 31.25 mm

85 mm × 59 mm × 43 mm

UART,RS-485,I/O,I²C

44 mm × 43 mm × 32 mm

UART,CAN,RS-232,RS-485,4 - 20mA

32.0 mm × 30.2 mm × 20.2 mm

78 mm × 67 mm × 40 mm

UART,CAN,RS-232,RS-485,4 - 20mA

25 mm × 25 × 13 mm

≤ 25 mm × 26 mm × 13 mm

60 mm × 60 mm × 80 mm

92 mm × 47 mm × 51 mm

Ethernet,GMSL,I/O

49 mm × 160 mm × 144 mm

1000Base-T1 Automotive Ethernet

192.6 mm × 157 mm × 126 mm

183 mm × 157 mm × 120 mm

Applications

Why Benewake?

300+

Patents

Our cutting-edge LiDAR technology

empowers our clients to achieve more

90+

Countries and Regions

Our expertise sees our clients through
even the most challenging situations

2000k+

Cumulative Shipment

Our reliable supply capacity ensures
our clients get what they need when they need it

High Measurement Frquency

Highly-accurate

Wide-range

Compact Design

Energy-efficient

Rich Interfaces

Partners

News

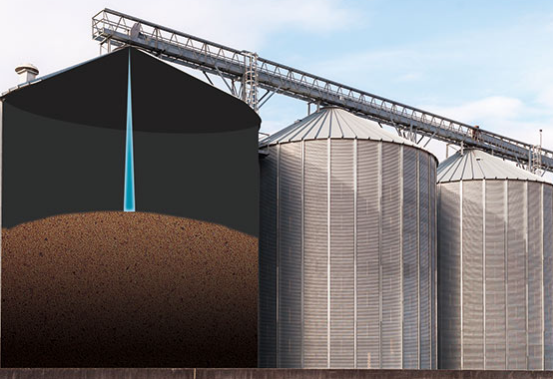

How a Small LiDAR Sensor Enables Automated Material Level Monitoring in Industrial Applications

In the era of Industry 4.0, characterized by smart manufacturing, system interoperability, and data-driven decision-making, materials constitute the core resource that powers the entire production cycle.

How is Volume Measured? How Do LiDAR Modules Help?

Accurate volume data is critical in many industries, including mining, construction, agriculture, and material stockyards, which helps maintain inventories, control costs, and align production with demand.

“The Underwater Eye” Evolves Again! Benewake Launches the World’s First Mass-Produced Underwater Single-Point LiDAR – TF-UW500

As a “Perception Explorer” with a decade of deep expertise in LiDAR technology, Benewake’s sensing solutions have been deployed across diverse applications—from drones to robots. With the pool cleaning robot industry rapidly scaling up, our perceptio

Everything You Should Know About LiDAR Sensors for Drones

Lightweight LiDAR sensors represent a groundbreaking advancement in modern drone detection technology. Mounted on UAVs, these sensors enable precise distance measurement by emitting near-infrared laser pulses and analyzing the backscattered signals f

How Much Does a Drone LiDAR Sensor Cost?

The demand for drone detectors is experiencing a significant surge, driven by the expanding drone applications in industries like surveying, agriculture, construction, and security. In this evolving market, the price is a critical factor that influen

Revolutionizing Liquid Level Detection: The Power of LiDAR water level sensors

LiDAR water level sensor, as an advanced measurement technology, offers us more accurate liquid level information, effectively overcoming the limitations of traditional methods.
